Operating Voltage:24VDC

Power Consumption:Less than 1W

Data Acquisition Rate:Up to 1000 samples per second

Number of Channels:8 analog inputs

Communication Interface:ControlNet, DeviceNet

Environmental Rating:IP20

Temperature Range:-20°C to +60°C

Reliability Rating:MTBF > 200,000 hours

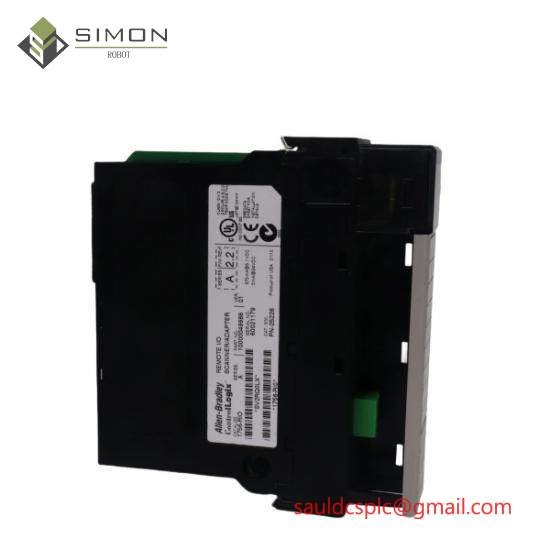

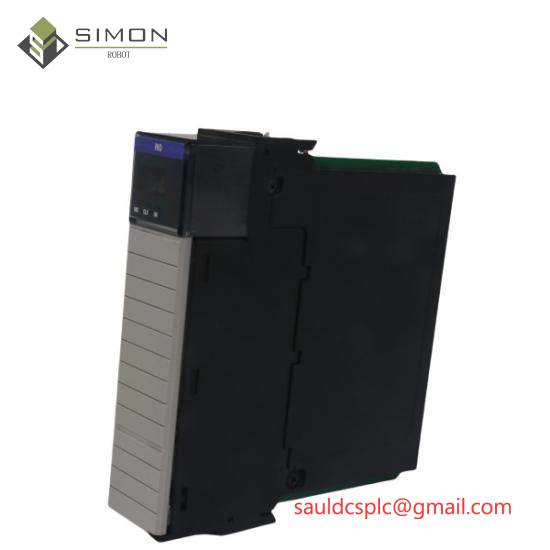

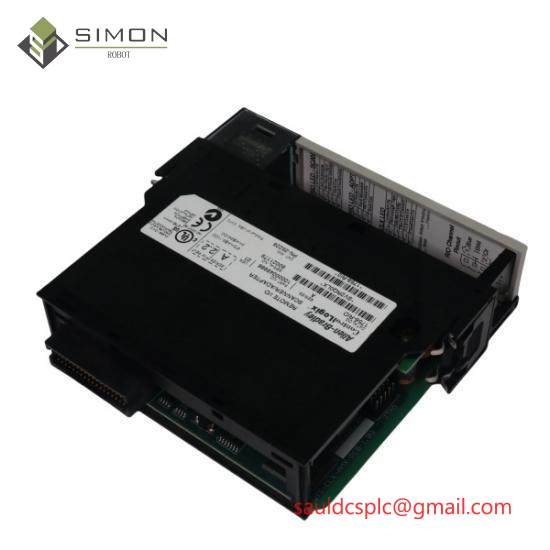

    The AB 1756-RIO Scanner Module is a robust and versatile component for industrial automation environments. It is specifically engineered to facilitate real-time data acquisition and control operations with precision and reliability.

    Equipped with 16 high-speed analog input channels and 16 digital output channels, this module ensures seamless integration into complex control systems. Its high sampling rate of 10 kHz guarantees accurate data processing, even in demanding industrial settings.

    Supporting both ControlNet and DeviceNet communication protocols, the 1756-RIO scanner module enhances connectivity and interoperability across various industrial networks. This feature is crucial for optimizing workflows and enhancing productivity in manufacturing and process industries.

    The module operates on a reliable 24 VDC power supply, ensuring consistent performance under varying environmental conditions. Its operating temperature range from -20°C to +55°C makes it suitable for use in a wide range of industrial locations, from cold storage facilities to hot production lines.

    Compact yet durable, the 1756-RIO scanner module measures 120mm x 70mm x 30mm and weighs only 0.2kg, making it easy to install and integrate into existing systems without compromising on space. Additionally, its IP20 rating protects against dust and light splashes, ensuring longevity and maintenance-free operation.
