Operating Range:6 kg to 16 kg payload

Reach:1420 mm to 1540 mm

Repeatability:±0.01 mm

Max. Speed:400 mm/s

Servo Motor Type:ABB High Performance Servo Motor

Control Interface:ABB IRC5 Compact or IRC5 Mini

Load Capacity:Up to 16 kg

Axial Travel:±300 mm

Electrical Specifications:230 VAC, 50/60 Hz

Mechanical Compatibility:ABB IRB 4600 series robots

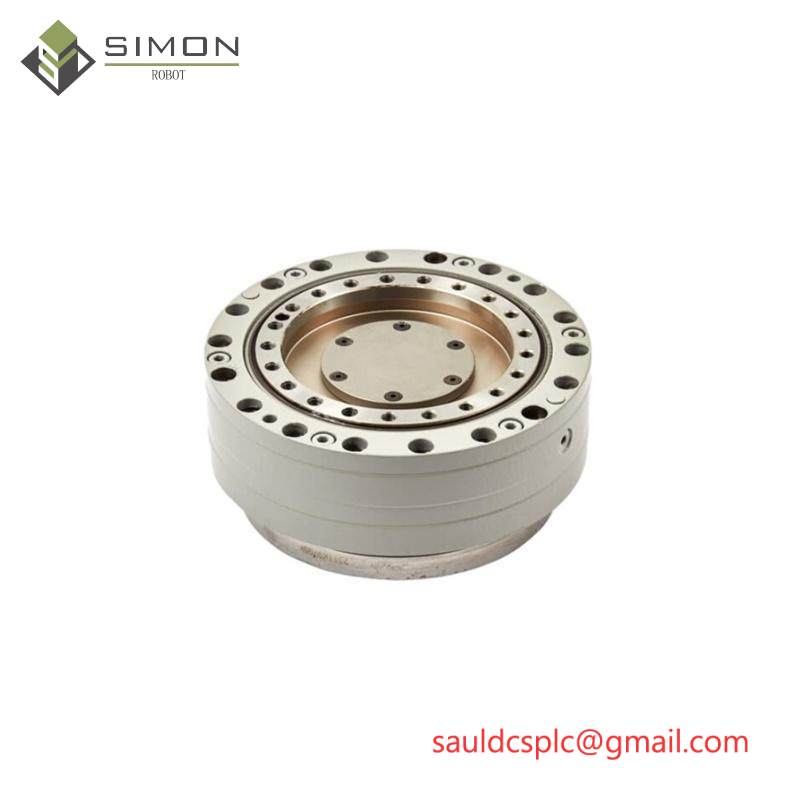

    The ABB IRB 4600 3HAC039473-003 Gearbox is engineered for high-performance and long-lasting operation in demanding industrial environments. Its robust steel and aluminum alloy construction ensures reliability and durability.

    This gear system is compatible with a variety of servo motors, offering flexibility in integration with different robotic arm configurations. It supports a load capacity of up to 55 kg, making it suitable for a wide range of tasks from material handling to assembly operations.

    With a speed range from 0.01 to 2000 rpm, the IRB 4600 3HAC039473-003 Gearbox provides precise control over robotic movements, enhancing efficiency and accuracy in production lines.

    The gear system is rated IP54, indicating its capability to resist dust ingress and withstand moderate water splashes from all directions, ensuring continuous operation in various industrial settings.

    Designed for easy maintenance, this gearbox requires inspection and lubrication every 2 years or after 5,000 operating hours, helping minimize downtime and maintenance costs.
