Type:Serial Measurement Board

Model Number:SMB3HAC042285-001

Manufacturer:ABB

Operating Temperature Range:-25°C to +70°C

Power Consumption:Max. 12W

Communication Interface:RS-485

Sampling Rate:Up to 1 MHz

Analog Input Channels:16

Analog Output Channels:4

Digital Input Channels:16

Digital Output Channels:8

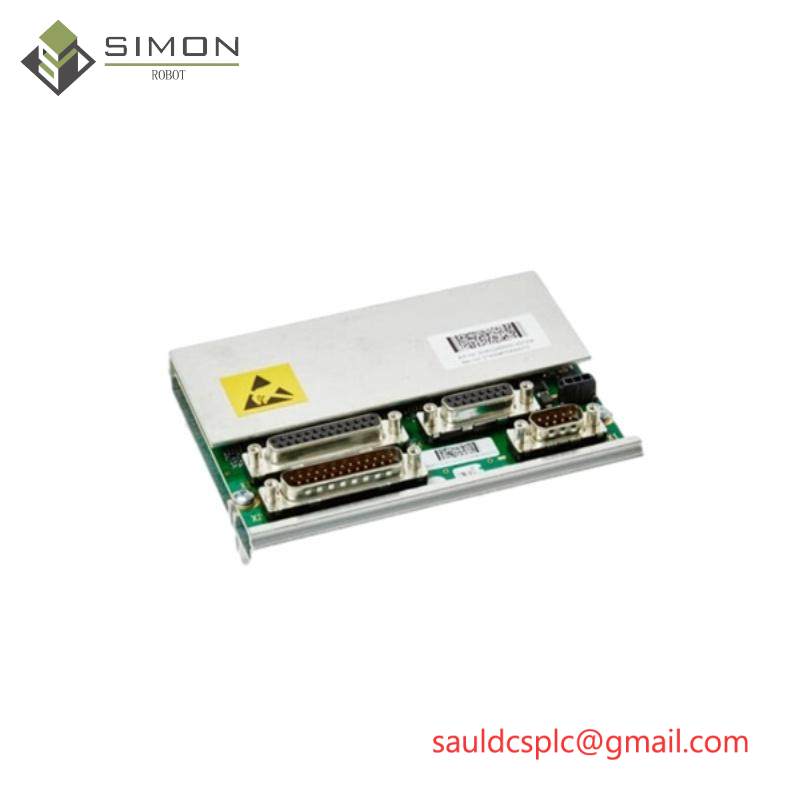

    The ABB SMB3HAC042285-001 is engineered with cutting-edge technology to provide unparalleled performance in industrial environments. It excels in serial data measurement with a wide operating range, ensuring reliability across various temperatures.

    With an input voltage of DC 24V, this board is compatible with a broad spectrum of industrial power supplies, guaranteeing seamless integration into existing systems.

    Featuring an exceptional measurement resolution of 0.01 μA and an accuracy of +/- 0.02%, it ensures precise data acquisition, critical for applications requiring high fidelity measurements.

    Equipped with a robust RS-485 communication interface, the board facilitates efficient data transfer, making it suitable for complex industrial automation setups.

    Compact yet durable, the board measures 125mm x 86mm, allowing for easy installation in space-constrained areas. Its lightweight design of 0.2kg minimizes the overall system load.
