Operating Voltage:24VDC

Output Type:Analog

Channels:8

Output Frequency:Variable

Load Current:Up to 1A

Response Time:Less than 1ms

Temperature Range:-40°C to +85°C

Communication Protocol:SLC 500

Mounting Type:Panel Mount

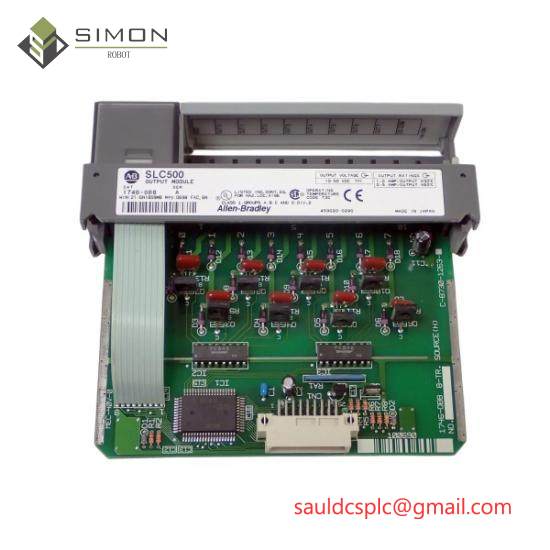

    Engineered for seamless integration into Allen Bradley’s SLC 500 system, the 1746-OB8 module boasts 8 digital output channels for precise control over industrial processes.

    Featuring a wide operating voltage range of 5 to 50 VDC, this module ensures compatibility with diverse industrial applications, delivering consistent performance under various conditions.

    With an on-state voltage drop of just 1.2V and off-state leakage current less than 1mA, the 1746-OB8 provides minimal power consumption and maintains signal integrity.

    Capable of handling a maximum load of 1 mA per channel, this module supports a wide range of load types and sizes, enhancing its adaptability across different industrial setups.

    Rated for continuous operation at a current of 0.25 A per output and a maximum of 8 A per module at 60°C, the 1746-OB8 ensures reliable performance even in demanding environments.

    Designed for open type enclosures, the module allows for easy installation and maintenance, further enhancing its practicality in industrial settings.
