Model Type:Redundancy Module

Manufacturer:Allen-Bradley

Model Number:1756-RM2

Channels:2

Current Rating (5.1 VDC):1.16 A

Current Rating (24 VDC):3.4 mA

Enclosure:Open Type

Rfi Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 1890 MHz, 3 V/M with 1 KHz sine-wave 80% AM from 2000 – 2700 MHz

Display:4 character alpha/numeric

Mounting:Chassis

Temperature Rating:-40°C to +85°C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Communication Speed:10/100 Mbps

Communication Protocol:Ethernet/IP

Interface:Ethernet

USB Port:Not applicable

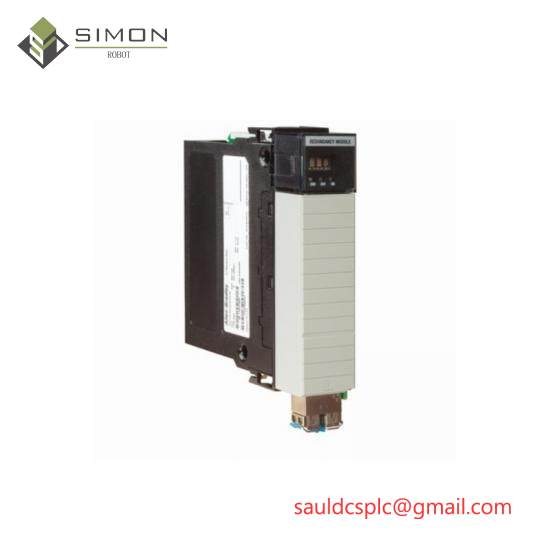

    This Allen-Bradley 1756-RM2 Redundancy Module is designed for critical applications where system availability and reliability are paramount. It ensures continuous operation by providing a backup solution that seamlessly takes over in case of a primary module failure.

    The module supports two channels for enhanced fault tolerance, ensuring that even if one channel fails, operations continue without interruption thanks to its redundant design.

    Featuring an open type enclosure, this module allows for flexible installation options within the ControlLogix system, making it suitable for various industrial environments.

    With robust RF interference suppression capabilities, the 1756-RM2 Module ensures reliable communication under challenging electromagnetic environments, safeguarding against potential disruptions.

    Equipped with an Ethernet interface and a USB port, the module facilitates easy integration with other network components and provides additional functionality for configuration and diagnostics.

    The 1756-RM2 Redundancy Module is engineered for industrial use, withstanding extreme temperatures, vibrations, and shocks, ensuring longevity and reliability in harsh conditions.
