Model Type:Communication Module

High Capacity IP Module:Yes

Manufacturer(s):Allen-Bradley

Communication Speed:10/100 Mbps

Communication Protocol:EtherNet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60°C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Not applicable

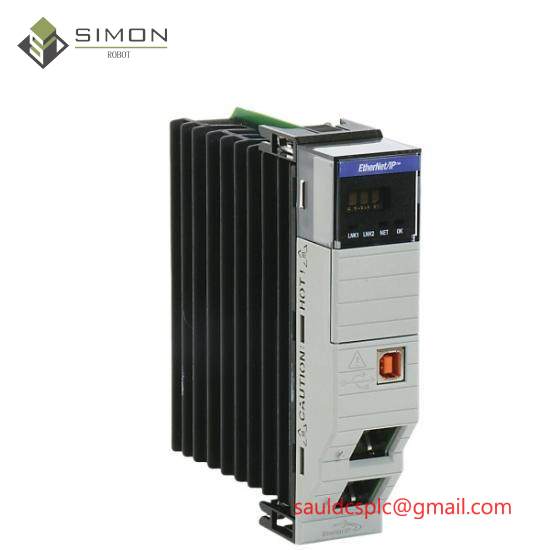

    The Allen Bradley 1756EN2TR ControlLogix Ethernet/IP Bridge Module is designed for industrial automation environments, offering an efficient solution for integrating ControlLogix systems with Ethernet/IP networks.

    This high-capacity IP module facilitates fast data transfer rates and ensures reliable communication between devices, crucial for optimizing production processes.

    With its open-type enclosure, the module is suitable for various mounting options, ensuring flexibility in installation within different industrial settings.

    The 1756EN2TR supports 802.3 compliant shielded or unshielded twisted pair cables, providing compatibility with a wide range of network infrastructures without compromising on performance.

    Operating within a temperature range of 0°C to 60°C, this module is built to withstand the harsh conditions often found in industrial environments, ensuring durability and longevity.

    Equipped with continuous isolation at 30 V, the 1756EN2TR guarantees safe operation and protection against potential electrical hazards, contributing to a safer working environment.
