Model Number:1769-L16ER-BB1B

Controller Type:CompactLogix

Memory Size:384 KB

Expansion Capacity:Up to 6 Modules

Digital Inputs:16 DI (sink)

Digital Outputs:16 DO (source)

Network Communications:Class 1, 3 Network

Ethernet Ports:2 DLR

TCP Connections:4

Backplane:POINT Bus

Storage:1 GB SD Card

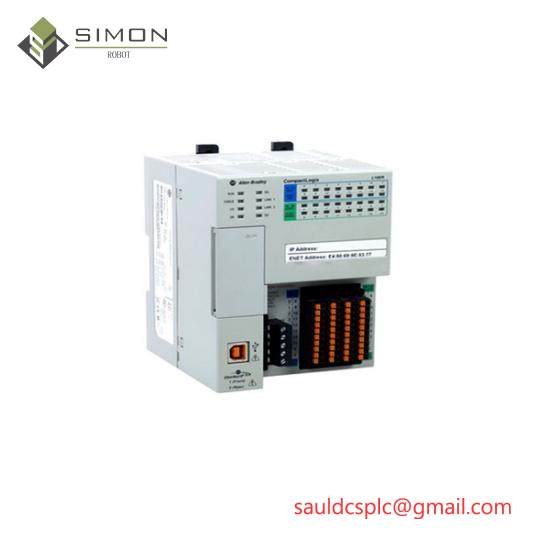

    The Allen-Bradley 1769-L16ER-BB1B CompactLogix Controller is a cutting-edge solution for modern industrial automation environments. Its compact yet powerful design makes it suitable for a wide range of applications, from small to large-scale manufacturing processes. The controller is equipped with a generous 384 KB memory, enabling efficient management of complex programs and algorithms.

    Featuring an expansion capacity of up to 6 modules, this controller allows for easy scalability and customization to meet specific application needs. With 16 digital inputs (sink) and 16 digital outputs (source), it provides ample connectivity for a variety of input and output devices, ensuring seamless integration within any control system.

    Equipped with a POINT bus backplane, the 1769-L16ER-BB1B supports high-speed data transfer and ensures reliable communication between modules. The inclusion of 2 Ethernet ports (DLR) facilitates robust network connectivity, supporting Class 1 and 3 network communications, and enabling 4 TCP connections for enhanced operational flexibility.

    Designed with user-friendliness in mind, this controller comes standard with a 1 GB SD card for storing configurations and data. Its compatibility with 1734 POINT I/O allows for the addition of up to 8 I/O expansion, making it a versatile choice for various industrial settings.

    Ideal for applications requiring efficient control and monitoring, the Allen-Bradley 1769-L16ER-BB1B CompactLogix Controller is a reliable choice for optimizing productivity, reducing downtime, and enhancing overall operational efficiency.
