Module Type:Digital DC Output

Flexbus Current:60 mA at 5V DC

Power Dissipation:5.0 W at 31.2V DC

Number of Inputs:16, Sourcing; Electronically Fused

Mounting Method:DIN Rail

Output Count:16, Sourcing Current

Electrical Interface:RS-485, Modbus Compatible

Communication Speed:Up to 1 Mbps

Environment Rating:IP20, NEMA 1

Operating Voltage Range:DC 18 to 36V

Operating Temperature:-20°C to 60°C

Storage Temperature:-40°C to 85°C

Reliability Rating:MTBF > 250,000 hours

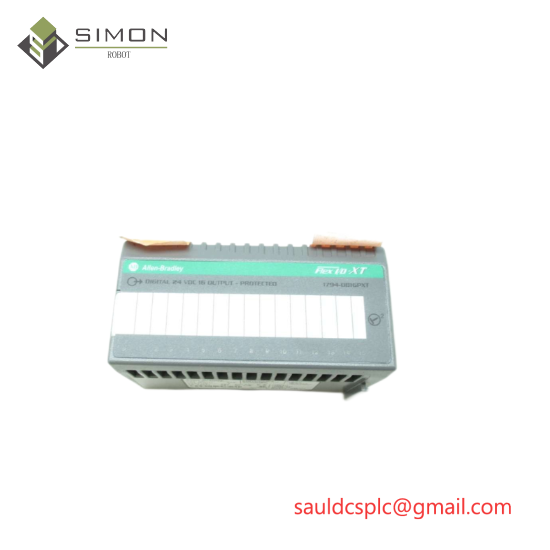

    The Allen Bradley 1794-OB16PXT Modular PLC is designed to provide high performance in a compact and robust package, suitable for a wide range of industrial environments. Its electronic fusing ensures safe operation against overcurrent conditions without affecting the rest of the system.

    With its 16-source outputs, the module can handle complex control tasks efficiently, making it ideal for machine control, process monitoring, and automation tasks requiring precise digital signals.

    This PLC supports flexible mounting on DIN rails, ensuring easy integration into existing industrial setups. Its compatibility with Allen-Bradley’s Flexbus network allows seamless communication with other Allen-Bradley devices, enhancing system integration and efficiency.

    Operating within the temperature range of -40°C to +85°C and handling humidity up to 95% non-condensing, the Allen Bradley 1794-OB16PXT is engineered for durability and reliability in harsh industrial conditions.

    The module comes with UL, CE, and TÜV certifications, ensuring compliance with international safety standards and quality assurance, making it a trusted choice for industrial automation projects.
