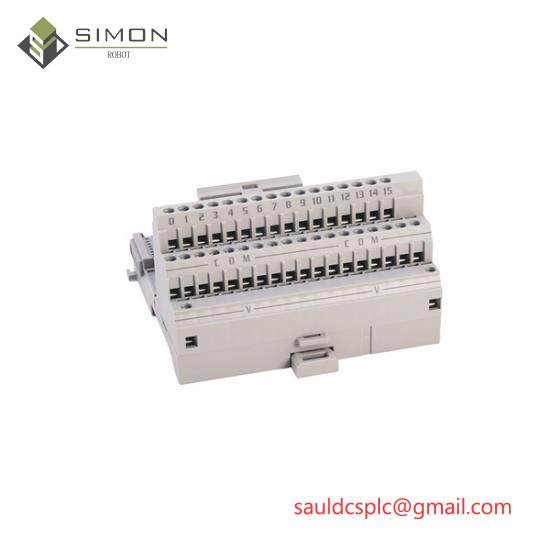

Model:1794-TB32

Brand:Allen-Bradley / Rockwell Automation

I/O Configuration:32 I/O Terminals (8 Common, 8 + Voltage)

Terminal Types:Screw-Clamp, Open Style

Mounting Style:DIN Mount

Protection Rating:IP20

Wire Capacity:Suitable for various wire gauges

    The Allen-Bradley 1794-TB32 Terminal Base is engineered for seamless integration into Allen-Bradley’s comprehensive line of programmable logic controllers (PLCs), enhancing system flexibility and scalability.

    With its 32 I/O terminals, this terminal base offers a robust platform for connecting and managing inputs and outputs from sensors, actuators, and other field devices, making it suitable for diverse industrial environments.

    Featuring 8 common terminals and 8 voltage terminals, the 1794-TB32 provides a dedicated space for connecting standard and high-voltage components, ensuring compatibility with a wide range of industrial protocols and standards.

    The screw-clamp design ensures secure and reliable connections, minimizing the risk of accidental disconnections or short circuits during operation. This feature is particularly advantageous in harsh industrial conditions where maintenance is critical.

    Mounted using DIN rails, the open-style terminal base facilitates easy installation and maintenance, allowing for quick access to individual terminals without needing to remove the entire module. This simplifies the process of troubleshooting and upgrading the system over time.
