Processor Speed:6 MHz

Memory Size:128 KB of user memory

I/O Capacity:Up to 16 I/O points

Operating Voltage:12 VDC to 24 VDC

Communication Interface:RS-232, RS-485, Ethernet

Dimensions:75.7 x 88.5 x 37 mm

Weight:127 g

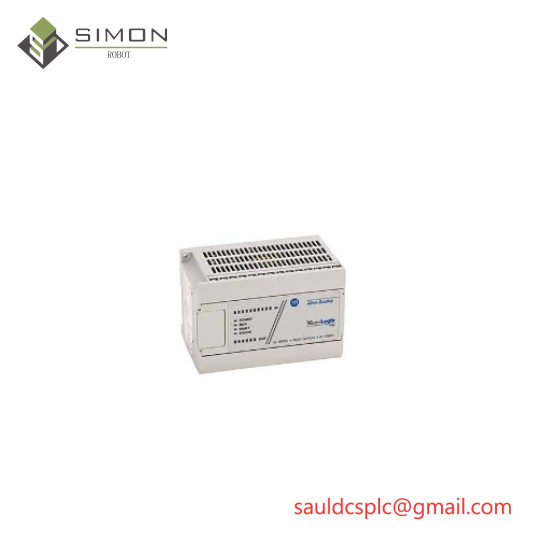

    The Allen-Bradley 1761-L16BWA MicroLogix 1000 is a powerful and compact programmable controller designed to handle a wide range of industrial control applications. With its advanced processing power and extensive I/O configurations, this controller offers unparalleled flexibility and efficiency in managing complex automation tasks.

    Featuring a rugged design suitable for harsh industrial environments, the 1761-L16BWA is equipped with 12 fast 24VDC inputs and 8 normal 24VDC inputs, ensuring reliable signal handling for various sensor connections. The 6 relay outputs provide versatile control options for actuators and other devices.

    Equipped with both RS-232/RS-485 and Ethernet/IP communication interfaces, the controller seamlessly integrates with existing networks, enabling seamless data exchange and control over multiple devices. This feature is particularly beneficial in modern industrial settings where network connectivity plays a crucial role.

    The controller supports various mounting options, including DIN Rail and Panel, making it adaptable to different installation scenarios without compromising on functionality or ease of use. Its dimensions of 180mm in length, 90mm in width, and 87mm in height ensure a compact footprint, perfect for space-constrained environments.

    Operating within a temperature range of -20 to 60°C, the 1761-L16BWA is designed to withstand challenging conditions commonly found in industrial settings. It also meets stringent environmental standards, including 5 to 95% relative humidity noncondensing and vibration up to 3G at 10 to 500Hz, ensuring reliable operation under diverse environmental conditions.

    With its comprehensive feature set, the Allen-Bradley 1761-L16BWA MicroLogix 1000 is an ideal choice for manufacturers seeking to enhance their production efficiency and streamline their automation processes.
