Model Type:Discrete Input Module

Module Type:Digital Input

Input Channels:16

Channel Grouping:2 groups of 8 channels

Communication Interface:16-point Ethernet connectivity

Voltage Category:24V DC sink/source

Operating Voltage Range:10…30V DC at 30°C (86°F), 10…26.4V DC at 60°C (140°F)

Weight:0.58 kg

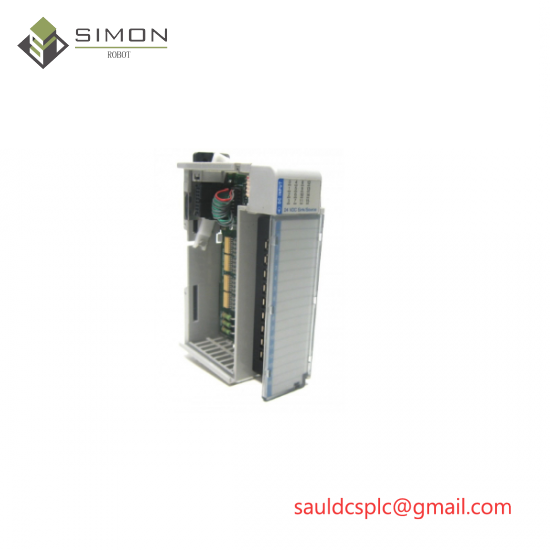

    The Allen Bradley 1769-IQ16F/A CompactLogix Input Module is a versatile digital input solution tailored for seamless integration into a variety of industrial control systems. This module excels in handling up to 16 discrete input signals, providing a robust platform for monitoring and controlling processes in manufacturing, energy, and process industries.

    Featuring an innovative design that supports both RS-485 and Ethernet communication protocols, this module ensures reliable data transfer under diverse environmental conditions. Its compact size and lightweight construction make it ideal for space-constrained applications without compromising on performance.

    With an operating voltage range from 10 to 30V DC at 30°C (86°F) and 10 to 26.4V DC at 60°C (140°F), the Allen Bradley 1769-IQ16F/A is designed to withstand harsh industrial environments, ensuring consistent operation across different locations and climates.

    The ability to handle up to 16 inputs allows for flexible configuration, enabling users to adapt the module to their specific needs. Whether monitoring switches, sensors, or other binary inputs, this module provides precise control and feedback, enhancing overall system efficiency.

    Moreover, its compatibility with Allen-Bradley’s CompactLogix series facilitates streamlined integration within existing control systems, streamlining installation, and reducing the time required for setup and maintenance.
